Based on an Linux installation using ASE version 15.0.2, here are some steps to install WebServices on an existing database server.
- Run the aseplugin executable (located in $SYBASE/ASEP/bin). Pass the parameter -i for interactive mode (not -I as stated in the Sybase documentation)
- Answer all the questions.
- The script $SYBASE/$SYBASE_WS/bin/installws is loaded into the database server, basically installing the procedures sp_webservices and sp_get_unique_table into the sybsystemprocs database.
- At the end a properties file "ws.properties" is generated in $SYBASE/$SYBASE_WS/props. You can manualy change this file.
- The installation software does not set all non-default configuration values to the value that has been specified during the installation. Check the generated ws.properties file to verify it is correct. A sample is provided here:
com.sybase.ase.ws.name = ASE1_WS com.sybase.ase.ws.producer.httpport = 8181 com.sybase.ase.ws.consumer.cisport = 8183 com.sybase.ase.ws.logfilename = /opt/sybase/admin/ASE1_WS/webservice.log com.sybase.ase.ws.producer.jettylogfile = /opt/sybase/admin/ASE1_WS/http.log com.sybase.ase.ws.interfaces = /opt/sybase/ase1502/interfaces com.sybase.ase.ws.libtcl = /opt/sybase/ase1502/OCS-15_0/config/libtcl.cfg com.sybase.ase.ws.ui.activate = true com.sybase.ase.ws.producer.tuning.maxthreads = 250 com.sybase.ase.ws.producer.tuning.minthreads = 45 com.sybase.ase.ws.producer.tuning.maxidletime = 60000 com.sybase.ase.ws.producer.tuning.ssl.maxthreads = 125 com.sybase.ase.ws.producer.tuning.ssl.minthreads = 10 com.sybase.ase.ws.producer.tuning.ssl.maxidletime = 60000 com.sybase.ase.ws.producer.ssl.password = com.sybase.ase.ws.producer.ssl.httpsport = com.sybase.ase.ws.producer.ssl.keystore = com.sybase.ase.ws.producer.ssl.keypassword =
- Enable web services in ASE by enabling it:
sp_configure "enable webservices",1
Configure WebServices for SSL
When SSL has been configured you can make secure connections and also use your browser for configuration purposes. Configure SSL by running configssl. You are asked to enter 2 passwords. Configssl automatically modifies the ws.properties file to reflect the new settings.
$SYBASE/$SYBASE_WS/bin/configssl -d <hostname>
The ws.properties file now has ssl entries.
com.sybase.ase.ws.producer.ssl.password = F0AA463AB062113FE6376956E2FF2665 com.sybase.ase.ws.producer.ssl.httpsport = 8182 com.sybase.ase.ws.producer.ssl.keystore = /opt/sybase/admin/ASE1_WS/keystore com.sybase.ase.ws.producer.ssl.keypassword = F0AA463AB062113FE6376956E2FF2665
Start webservices like this:
$SYBASE/$SYBASE_WS/bin/runws -Usa_webservices -P webs01 -SASE1 -f /opt/sybase/admin/ASE1_WS/ASE1_WS.properties
- Keep a space between the -P and the actual password.
- The login specified, in this case sa_webservices, should have sa_role.
- Look in the file specified at com.sybase.ase.ws.logfilename if there were any errors during start-up.
Using the GUI to test the setup

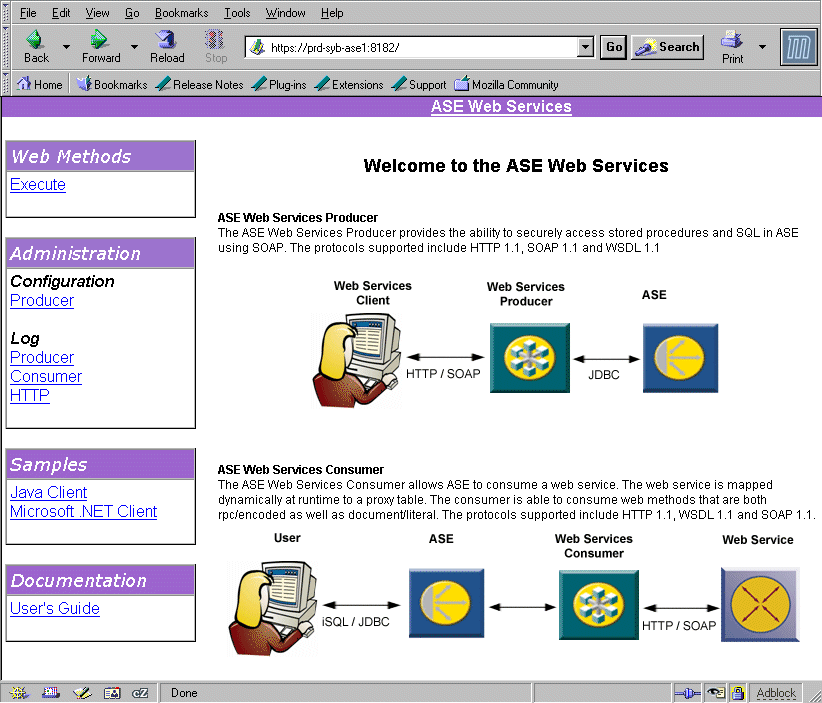

When in the ws.properties file com.sybase.ase.ws.ui.activate has been set to true, you can use a browser to access the WebServices server. The URLs that you can use are, for example, http://prd-syb-ase1:8181 and https://prd-syb-ase1:8182. The gui allows you to to view the configuration settings, log files and test web methods. It looks like this:
Using the runexecute client
The runexecute script (located in $SYBASE/$SYBASE_WS/samples/apacheclient) can be used to further test your setup. To run a simple test, like retrieving the @@version global variable from an ASE, do this:
chmod +x $SYBASE/$SYBASE_WS/samples/apacheclient/runexecute $SYBASE/$SYBASE_WS/samples/apacheclient/runexecute "http://prd-syb-ase1:8181/services/ase" ASE1 peter peter01 "header=yes" all 1 "select @@version"
In the Sybase documentation a wrong portnumber is used in combination with the runexecute client, use 8181 in stead of 8183. The output should like like this: runexecute sample output.
Exposing a WebService
When you want to expose a WebService built into your ASE database and thereby make it available to the outside world, follow these steps.
- Define a new server called ws that maps to the WebServices engine. This server ws must be defined in the interfaces file before you can use it.
- Grant the user that will manage the webservices the role "webservices_role"
grant role webservices_role to <login>
- Create a service with the "create service" statement. This type of statement looks very much like a stored procedure definition.
create service GetCustomer_service secure ssl, userpath "GetCustomer" type xml (@id_customer int) as select name, phone from customer where id_customer = @id_customer
- Deploy the new service
Now the service has been created and it's available.
To see the definition for the outside world (the wsdl) use your browser and open this url:
Stop webservices like this:
$SYBASE/$SYBASE_WS/bin/stopws -Usa_webservices -P webs01 -SASE1 -f /opt/sybase/admin/ASE1_WS/ASE1_WS.properties
